By: Aaron Lai
September 2, 2026
As I plan for a vacation in the coming months to Japan, I realize there are many things to do in preparation. Earlier this year, I renewed my passport, but I only recently realized I had to start booking some things. This planning process has made me recognize I will not be able to see everything I want to. I think my old self would want to see as many things as possible, especially as it is my first time there. However, between missing reservations and the high costs of other ones, as well as the overall number of places to see, I think I should take some days slower and not rush through areas just for the sake of checking it off. Instead, I want to enjoy the trip by taking things at my own pace and being selective with what I can see, knowing I plan to return another time. This is true for companies too, as the best ones do not try to capture the entire market with a sole product, but rather understand their target audiences and plan accordingly with multiple options. Today, Fractal Design is releasing a new case in their Summit lineup, and we have the Summit Ambience Blackout TG. Fractal Design is looking to target a high-performance system with optimized cooling capabilities. As tempting as it would be for this company to check off all the checkboxes and meet every potential buyer, I wonder what purposeful decisions Fractal Design has made for the Summit. Thankfully, we do not need to wonder any longer, as we can read on to find out!
Today's review unit arrived with three other release day Fractal Design products, each in their own separate corrugated cardboard box. Traveling with UPS and their Standard ground service, this box arrived in excellent condition with no dents or bruises to be concerned about. Along with the Summit Ambience Blackout TG, Fractal Design also sent us their Radius 240 RGB Black, Define One, and the Refine 2, which are all launching on the same day.
Out of the larger cardboard box, we have a minimally styled retail box, which holds the Fractal Design Summit Ambience Blackout TG. On the side, you can see the Fractal logo, along with a large printed "Summit" near the bottom. The rest of the box is clean of any other words, features, or specifications. There is not much else to this box, so I quickly grabbed a knife to open it up.
Before we proceed, I have attached the specifications from our reviewer's guide for your reading pleasure:
Specifications
Combined 3.5/2.5 drive mounts: 2
Dedicated 2.5 drive mounts: 2 (supports up to six 2.5” drives total)
5.25 drive mounts: 0
Expansion slots: 7
Motherboard compatibility: E-ATX up to 277 mm / ATX / mATX / ITX
Reverse connector motherboard support: ATX / mATX
Power supply type: ATX
Front interface: 1 × USB Type-C 20 Gbps, 2 × USB Type-A 5 Gbps, 1 × Audio combo jack, Power button
Total fan mounts: 5 × 140 or 7 × 120
Front fan: 3 × 120 mm, 3 × 140 mm (3 × 140 mm Momentum Included)
Top fan: 3 × 120 mm or 2 × 140 mm
Rear fan: 1 × 120 mm
Bottom fan: —
Dust filters: PSU
Front radiator: Up to 280/360 mm
Top radiator: Up to 280/360 mm
Rear radiator: Up to 120 mm
Bottom radiator: —
PSU max length: 253 mm
GPU max length: 425 mm with front fan mounted or 393 mm with 30 mm-thick front radiator
CPU cooler max height: 173 mm
Cable routing space: 34 mm
Cable routing grommets: 1 × large grommet
Fixed straps: Hook-and-loop straps
Tool-less access: Front panel, top panel, PCIe cover, both side panels, bottom filter, top bracket, PSU bracket
Captive thumbscrews: PSU bracket, top radiator bracket
Left side panel: Tempered Glass
Right side panel: Industrial steel (Solid)
Case dimensions (L × W × H): 492 x 229 x 515
Case dimensions w/o feet/protrusions/screws: 492 × 229 × 495
Net weight: 10.08 kg
Package dimensions (L × W × H): 595 × 350 × 620
Gross weight: 12.01 kg

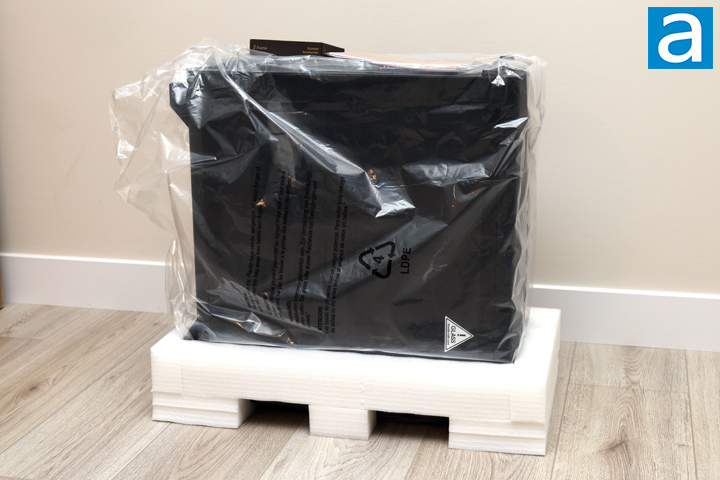

Out of the box, the Summit Ambience Blackout TG is covered in a plastic bag and sits in two open-cell foam brackets. I really appreciate the use of this sort of foam that does not easily break and make a mess. There are multiple sheets of plastic to protect both sides of the tempered glass. In addition, a separate accessories box and user manual are found in one of the foam brackets.
